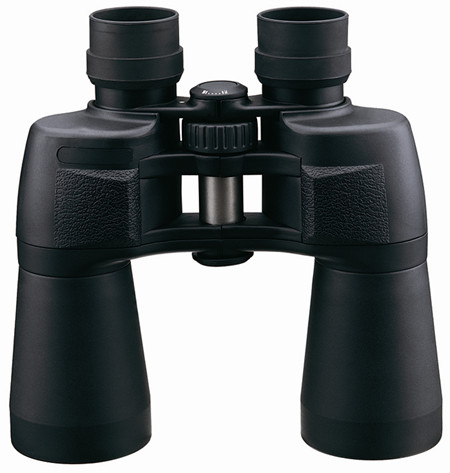

NIP7

Product Name：NIP7
Model：
Product Detail：

Model No.	NIP70735	NIP70830	NIP70840
Power	7 X ± 5%	8 X ± 5%	8 X ± 5%
Objective Diameter(mm)	Φ35mm ± 1mm	Φ30mm ± 1mm	Φ40mm ± 1mm
Field Angle	9.2⁰ ± 10%	8.0⁰ ± 10%	8.0⁰ ± 10%
Filed of View(ft/1000yds)	483ft.	420ft.	420ft.
Exit Pupil Dia (mm)	Φ5.0mm± 10%	Φ3.75mm± 10%	Φ5mm± 10%
Near Focus (m)	3.5m	3.5m	4.5m
Eye-relief (mm)	15.4mm	12.5mm	15mm
Watertight Depth(m)	1	1	1
Shockproof Hight(m)	1	1	1
Operation Temp	-5°~60°	-5°~60°	-5°~60°
Resolving Power	8"	8.8"	7"
Focusing System	CENTER FOCUS	CENTER FOCUS	CENTER FOCUS
Focusing Adjustmetn	-4 TO +8 DIOPTER	-4 TO +8 DIOPTER	-4 TO +8 DIOPTER
Adjustable Eye Pupil	58--72 mm	58--72 mm	58--72 mm
Weight (NET:g)	480	470	530
Product Size	18.4 X 6.2 X 12.8	18.7 X 6.2 X 12.8	18.7 x 6.2 x 13.5
