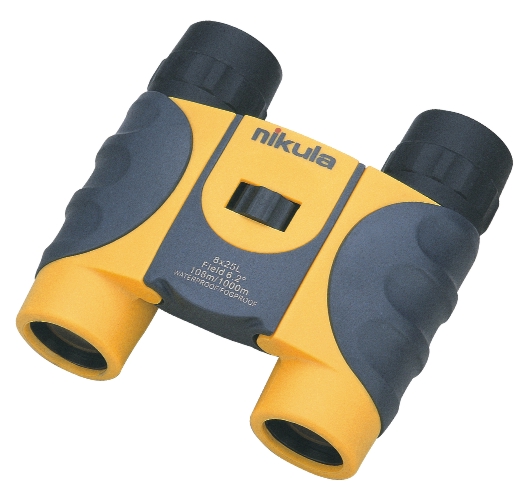

NW15

Product Name：NW15
Model：
Product Detail：

Model No.	NW150825L	NW151025L	NW151225
Power	8 X ± 5%	10 X ± 5%	12 X ± 5%
Objective Diameter(mm)	Φ25mm ± 1mm	Φ25mm ± 1mm	Φ25mm ± 1mm
Field Angle	6.2⁰ ± 5%	5.2⁰ ± 5%	5⁰ ± 5%
Filed of View(ft/1000yds)	324ft.	273ft.	261ft.
Exit Pupil Dia (mm)	Φ3.1mm± 10%	Φ2.5mm± 10%	Φ2.1mm± 10%
Near Focus (m)	4m	4m	4m
Eye-relief (mm)	17mm	16mm	13.5mm
Watertight Depth(m)	1	1	1
Shockproof Hight(m)	1	1	1
Operation Temp	-5°~60°	-5°~60°	-5°~60°
Resolving Power	11.2"	11.2"	11.2"
Focusing System	CENTER FOCUS	CENTER FOCUS	CENTER FOCUS
Focusing Adjustmetn	-4 TO +8 DIOPTER	-4 TO +8 DIOPTER	-4 TO +8 DIOPTER
Adjustable Eye Pupil	50--73mm	50--73mm	50--73mm
Weight (NET:g)	390.5	390.5	390.5
Product Size	11.0 x 5.8 x 11.6	11.0 x 5.8 x 11.6	11.0 x 5.8 x 11.6
